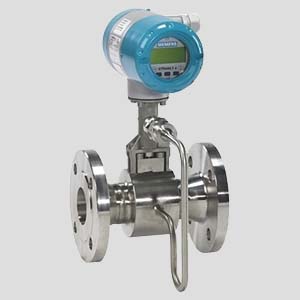

Vortek Flow Meter

Design & Specification :

Accuracy : ±0.1% of flow rate
Medium : Gas, Water, Oil, and more
Mesuring Capability : Mass flow rate, temperature, pressure
Housing Material : 304L Stainless Steel, Aluminium, and more
Temperature :-400C to +2600C
Output Signal : 4-20 mA, pulse
Communication : Modbus, HART
Power Supply : 18-36 VDC, 85-265 VAC
Enclosure : Standard version: IP66 or Ex-proof version: IP67
Ex-proof certification : IECEx, ATEX, NEPSI, and Japanese ex-proof certification

INQUIRY FORM

Call :
  021-2961 9215
  0812 1901 1777   Back to Products

Product Description

Vortex flow meter is a flow measurement device best suited for flow measurements where the introduction of moving parts presents problems. They are available in industrial grade, brass or all plastic construction. Sensitivity to variations in the process conditions are low and with no moving parts have relatively low wear compared to other types of flow meters.

Vortex flowmeters measure fluid velocity using a principle of operation referred to as the von Kármán effect, which states that when flow passes by a bluff body, a repeating pattern of swirling vortices is generated. The frequency that the vortexes are shed depend on the size and shape of the body.

Vortex flowmeters offer many advantages for flow measurement including easy installation without impulse lines, no moving parts to maintain or repair, less leak potential and a wide flow turndown range. Vortex meters also offer very low power consumption, allowing for use in remote areas.

Application

  • Water supply
  • Waste water treatment plants
  • Fire fighting systems
  • Power plants
  • Pulp and Paper Industry
  • Drinking water
  • Irrigation
  • Heating – conditioning systems
  • Salty water or Marine
  • Chemical Industry
  • Oil and Gas
  • Others industries
