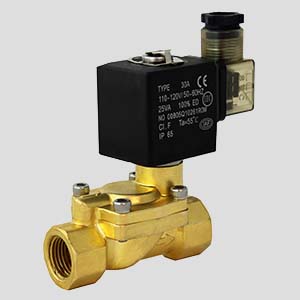

Solenoid Valve

Design & Specification :

Way Slow Closing Pilot Diaphragm
Normally Closed (Option: Normally Open)

Body : Brass
Seal : NBR (Buna N)
option : FKM, EPDM
Media temp : 14 to 176°F (14 to 266°F FKM)
Operating Pressure : 4 to 175PSI (AC Coil), 4 to 145PSI (DC Coil)
ambient temp : 23 to 110°F
Coil : Class H, IP65
Coil Power : 12 to 20W

INQUIRY FORM

Call :
  021-2961 9215
  0812 1901 1777   Back to Products

Product Description

A solenoid valve is an electromechanical device in which the solenoid uses an electric current to generate a magnetic field and thereby operate a mechanism which regulates the opening of fluid flow in a valve.

Solenoid technology is an electro-mechanical device that controls the flow of a media through a pipe by opening or closing the valve orifices. The solenoid assembly consists of a coil, plunger, and sleeve assembly. In a normally closed valve, a plunger return spring holds the plunger against the orifice, preventing flow through the valve. When the coil is energized, a magnetic field is produced, raising the plunger and allowing flow through the valve. Multiplex valve series that controls various kinds of fluid such as water, air, gas, oil.

Application

  • Offshore & Petrochemical Applications
  • Offshore Drilling Panels
  • Offshore Well Close Down
  • Offshore Sub Sea
  • Chemical Injection Unit Control
  • Diving System – Breathing air supply to diving bells
  • Anhydrous HCL Supply Valves
  • Air Supply
  • Fire Fighting-Nitrogen or air supply valves (Damped Valves)
  • Oil Pressure Regulation – R.O.V.’s – Diving Industry
  • Gas Supply to operate Life Boat Motors in Oil Fire at Sea
  • Hydrogen Supply Valves with Seal Monitoring Port
  • Oxygen Supply Valves for Diving Industry
  • Hydrocarbon Gas
