PVC or Plastic Butterfly Valve

Design & Specification :

Size : 2” to 120”
Pressure : Class 150LB-1500LB PN6-PN160
Operation : Lever, Gear, Gearbox, Pneumatic, Electric Actuator, Pneumatic or Hydraulic Actuator
Temperature Steel : -20 0C to +180 0C
Connection Type : Wafer, Lug or Flange
Material Body : PVC / CPVC / PP / PVDF
Material Disc : PVC / CPVC / PP / PVDF
Material Stem : Stainless Steel 316 Stem with full disc engagement
Face to face : According to API-609, MSS-SP-25, MSS-SP-67 and ISO 5272
Design : ASME 150/200 Psi, PN16, PN25, JIS 10K, JIS 16K

INQUIRY FORM

Call :
  021-2961 9215
  0812 1901 1777   Back to Products

Product Description

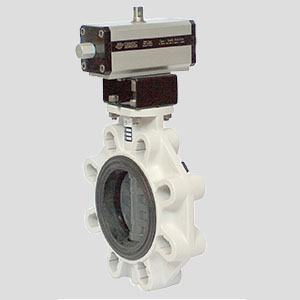

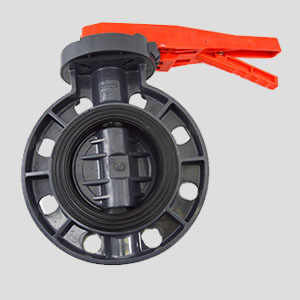

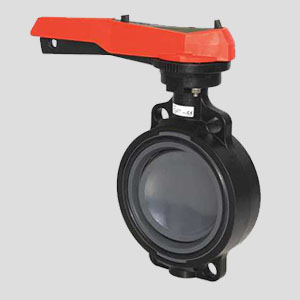

PVC butterfly valve is a type of valve which can be used for isolating or regulating flow.  The closing mechanism is the disc, which sits in the center of the valve body. Our PVC butterfly valve offers a light weight, lower cost, heavy duty, and maintenance free solution to high pressure applications. PVC butterfly valve is designed as either lug-style or wafer-style.

Application

  • Water supply
  • Waste water treatment plants
  • Pulp and Paper Industry
  • Drinking water
  • Irrigation
  • Salty water or Marine
  • Chemical Industry
  • Oil and Gas
  • Others industries
